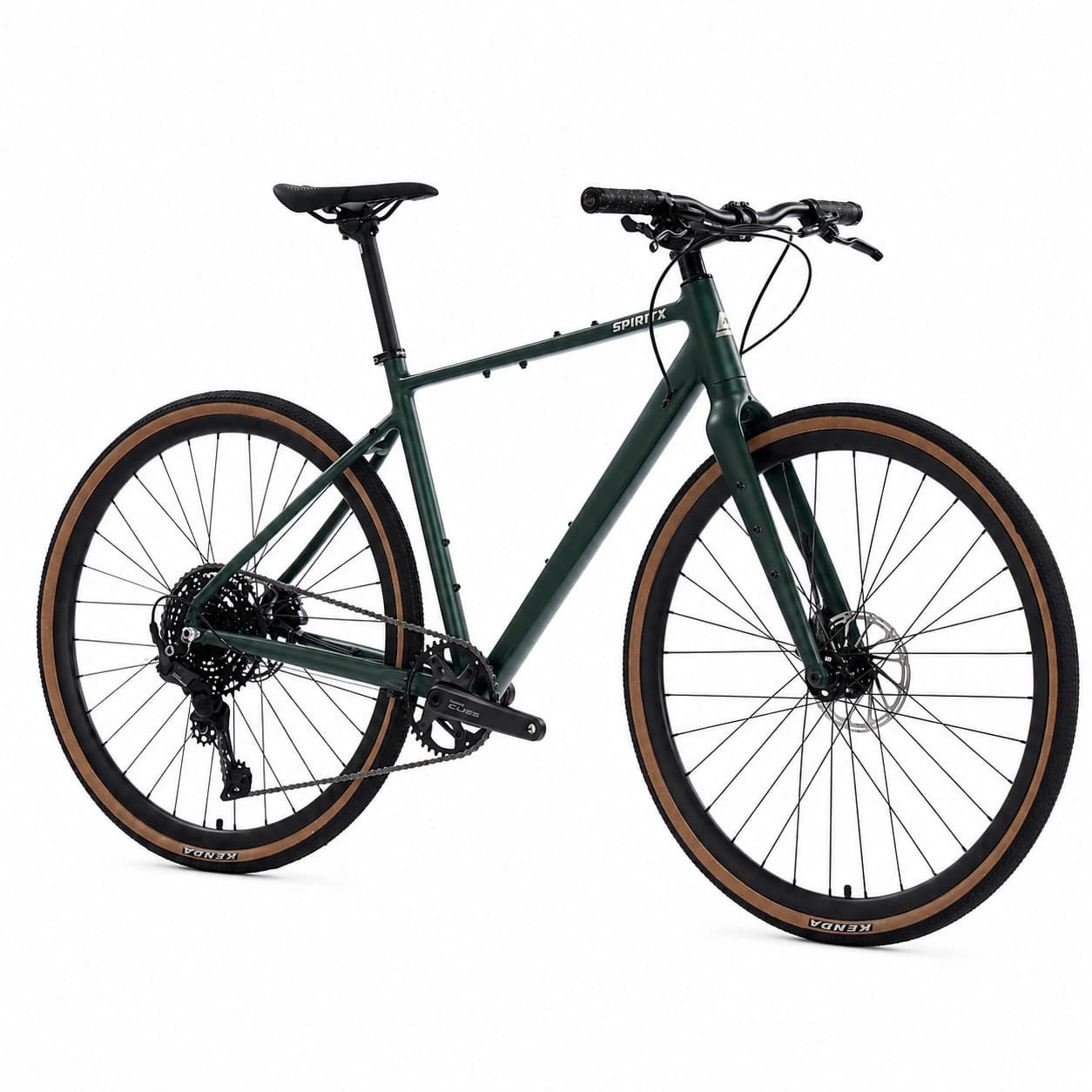

Scout S10 builds on the versatile SpiritX Scout gravel platform with an upgraded SHIMANO CUES 1×10 drivetrain. The wider 11–48T gearing provides more usable ratios for urban riding, long-distance cruising, rolling terrain and light gravel exploration, while retaining the stable and comfortable geometry of the Scout platform.
- Lightweight aluminum Scout frame platform
- SHIMANO CUES 1×10 drivetrain
- Wide-range 11–48T gearing
- SHIMANO hydraulic disc brakes
- Up to 700×50C tire clearance
- Stable and comfortable gravel geometry
Frame
- Frame Model
- WIND
- Frame Material
- Aluminum Alloy
- Bottom Bracket Shell
- BSA68 Threaded Bottom Bracket
- Cable Routing
- Semi-Internal Cable Routing
- Rear Spacing
- 12×142 mm Thru Axle
- Front Spacing
- 100×12 mm Front Thru Axle
- Brake Mount
- Flat Mount Disc Brake
- Maximum Tire Clearance
- Compatible with 700×50C Tires
- Head Tube
- 42/52 mm Straight Head Tube
- Seatpost Compatibility
- 27.2 mm Seatpost Compatibility
- Front Derailleur Compatibility
- 31.8 mm Clamp-On Front Derailleur Compatible
Suspension
- Fork
- SpiritX aluminum alloy front fork, thru-axle design, flat-mount disc brake installation.
Brakes

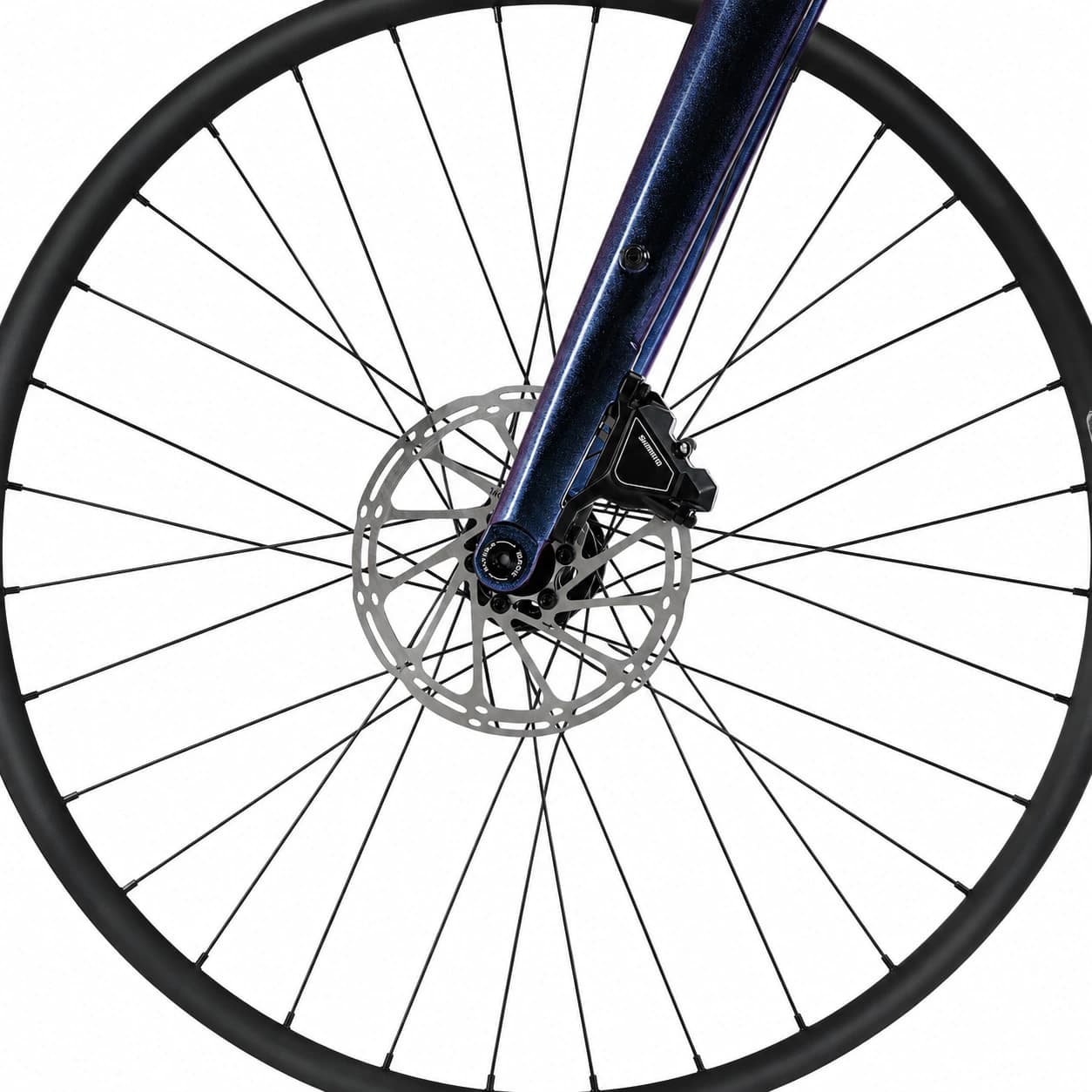

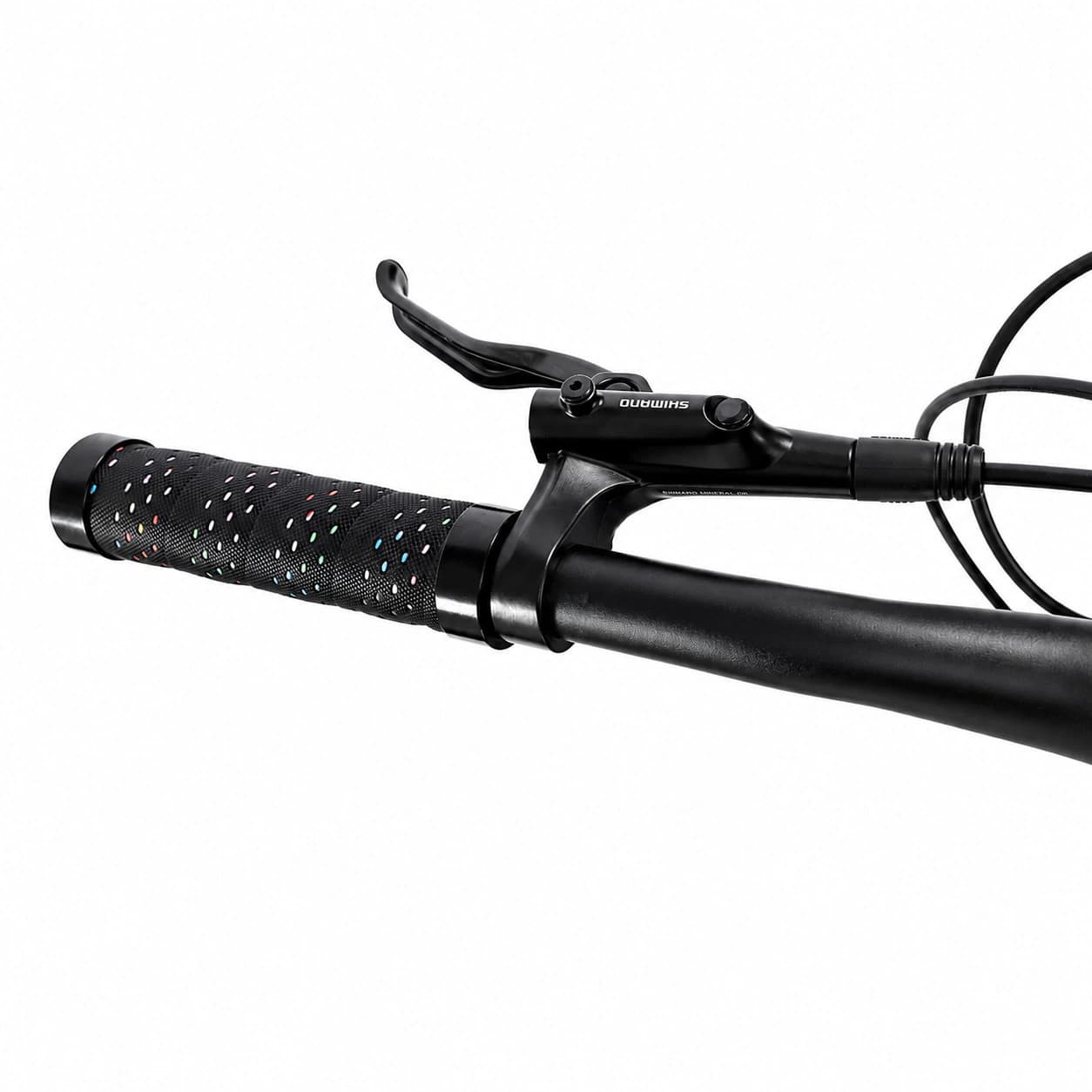

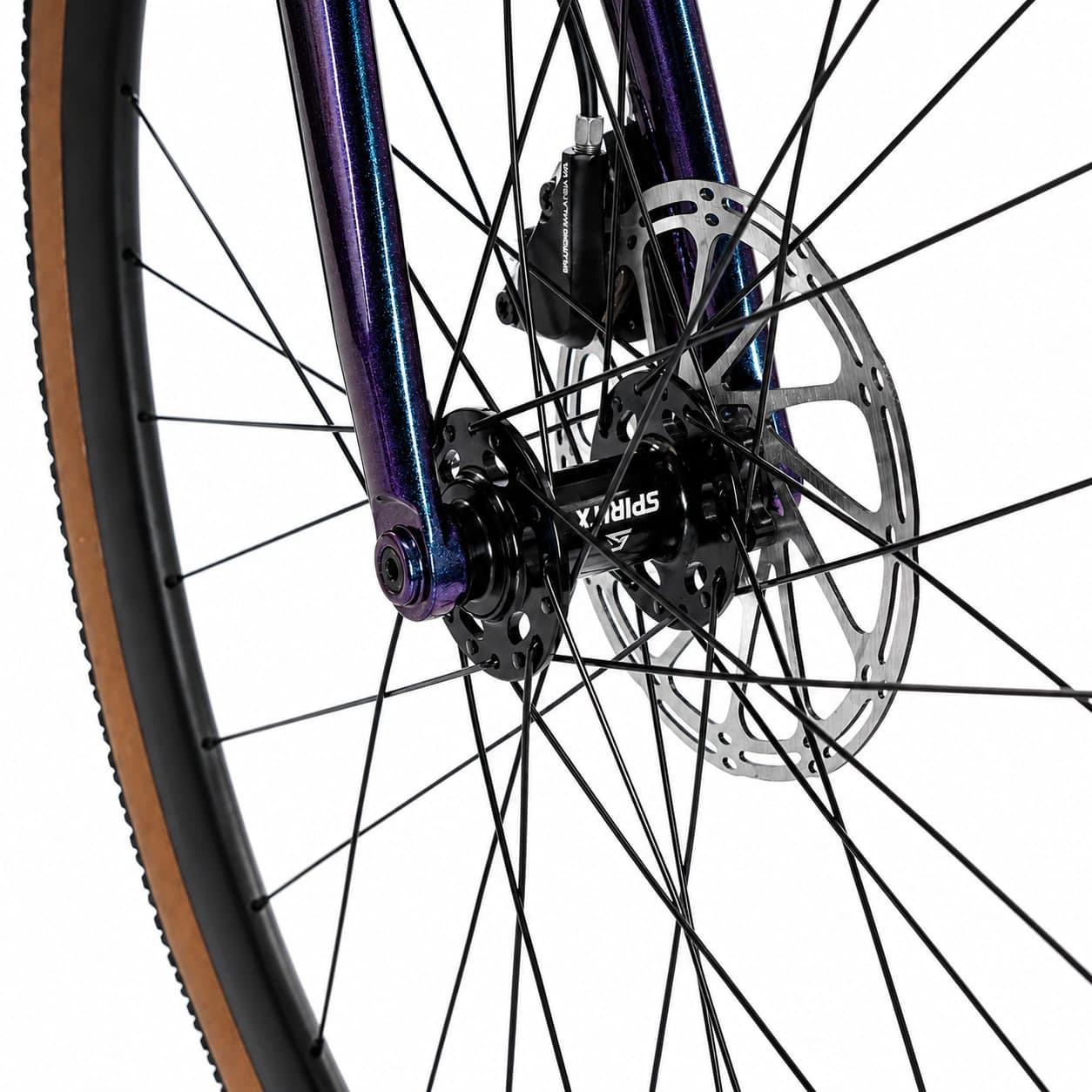

- Front Brake
- SHIMANO UR300 Hydraulic Disc Brake, 160mm Rotor
- Rear Brake
- SHIMANO UR300 Hydraulic Disc Brake, 160mm Rotor
Drivetrain

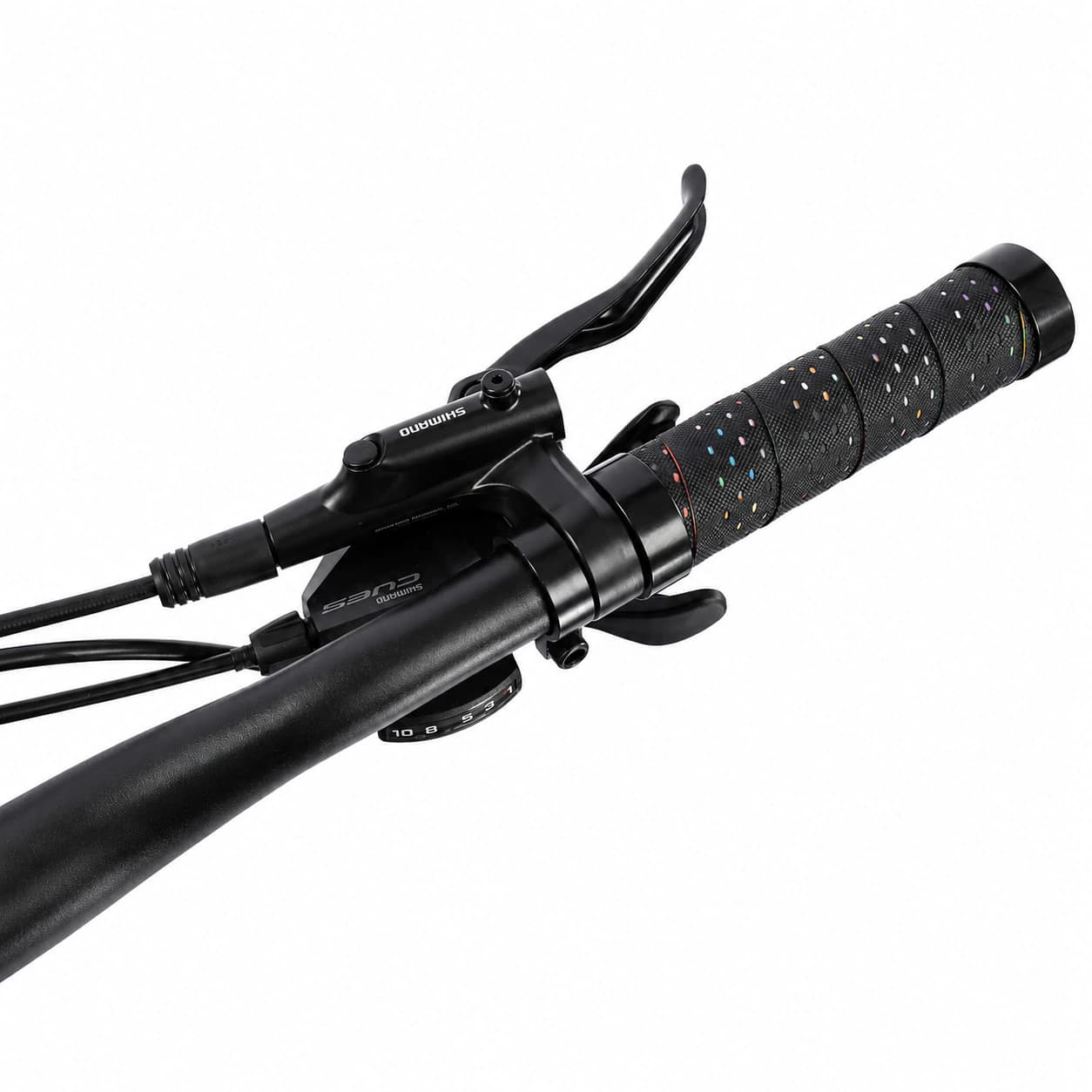

- Shifter
- SHIMANO CUES U6000 1×10S Shifter

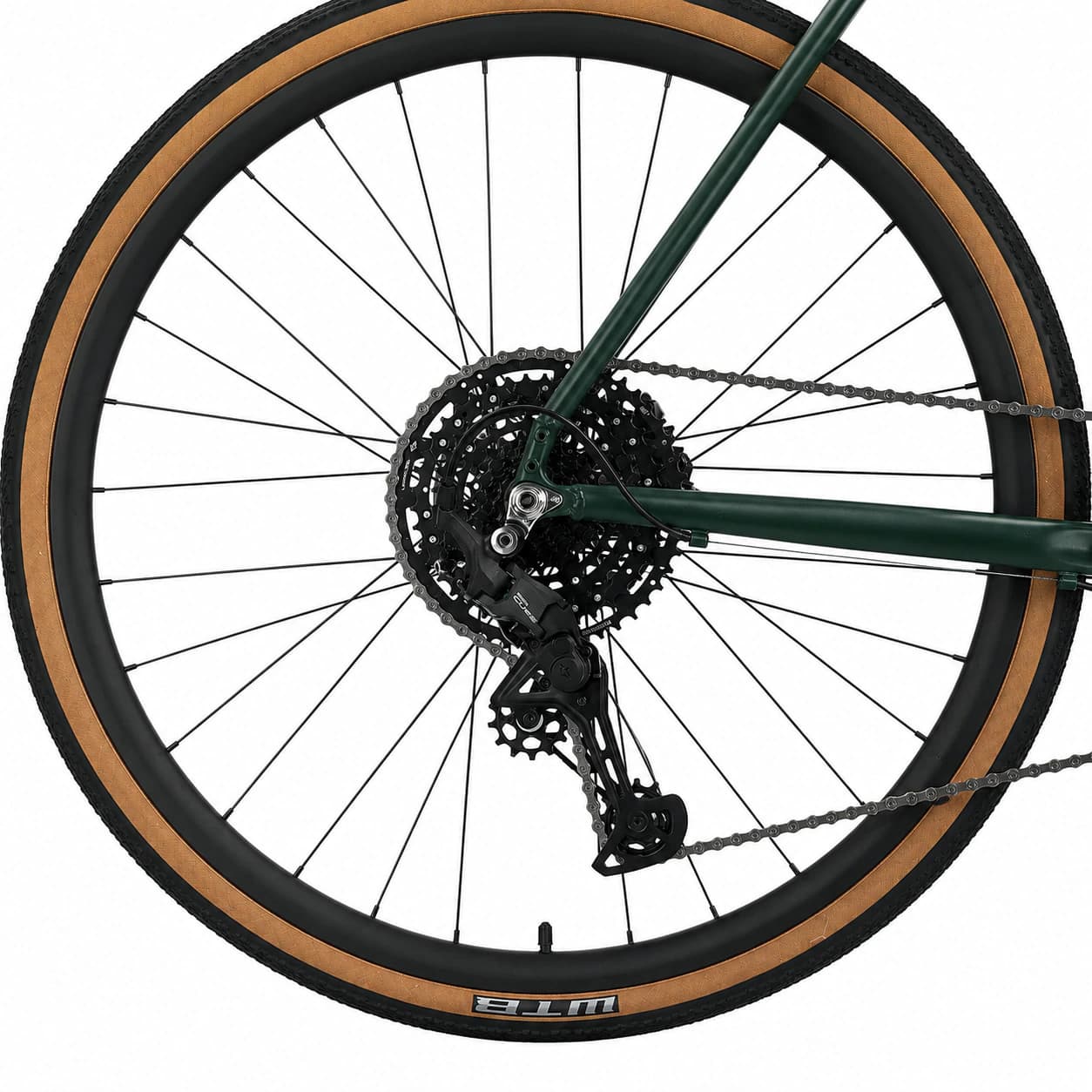

- Rear Derailleur
- SHIMANO CUES U6000 10-Speed Rear Derailleur
- Cassette
- SHIMANO LG300-10 10-Speed Cassette 11-48T
- Chain
- SHIMANO LG500 Chain

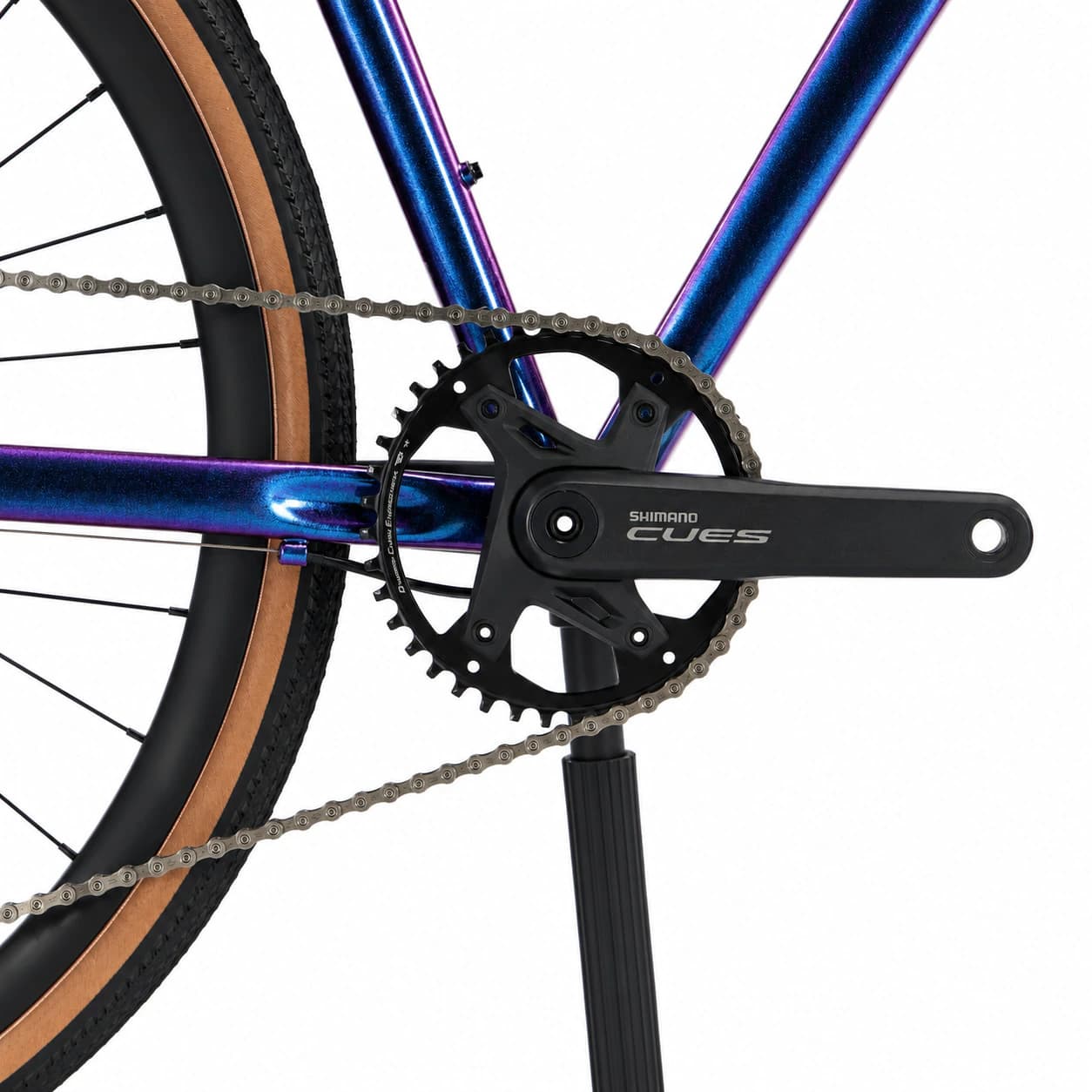

- Crankset
- SHIMANO U6000 Single Crankset
- Chainring
- 40T Chainring
- Bottom Bracket
- SHIMANO MT501 BSA 68mm Threaded Bottom Bracket
Wheels & Tires

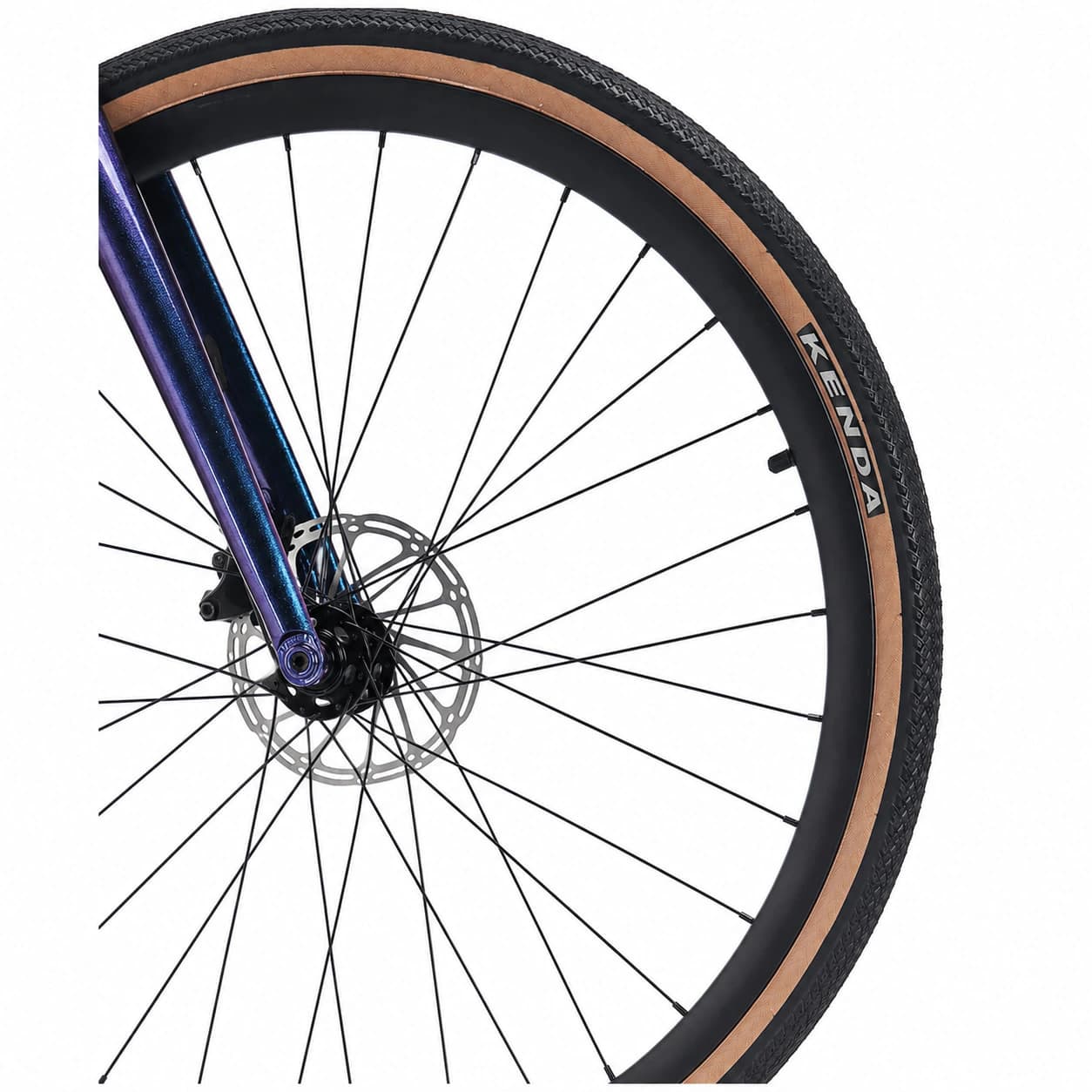

- Front Tire
- Kenda K1185 700×35C Tire
- Front Wheel
- Aluminum Alloy Front Wheel, 29mm Rim Depth, 32H, 6-Bolt Disc Brake Mount, 19mm Internal Width
- Rear Tire
- Kenda K1185 700×35C Tire
- Rear Wheel
- Aluminum Alloy Rear Wheel, 29mm Rim Depth, 32H, 6-Bolt Disc Brake Mount, 19mm Internal Width
- Tubes
- Kenda 700Cx35/43C

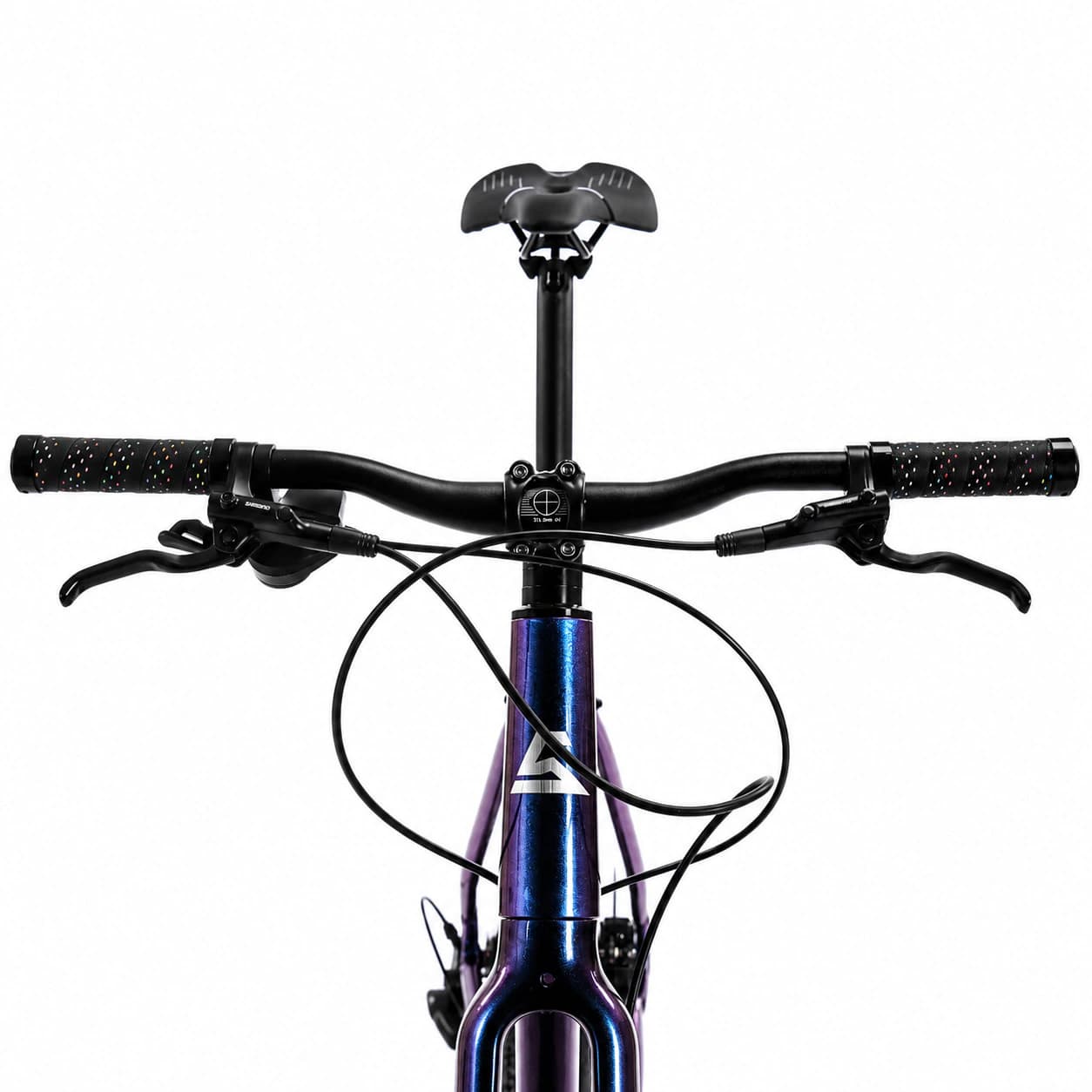

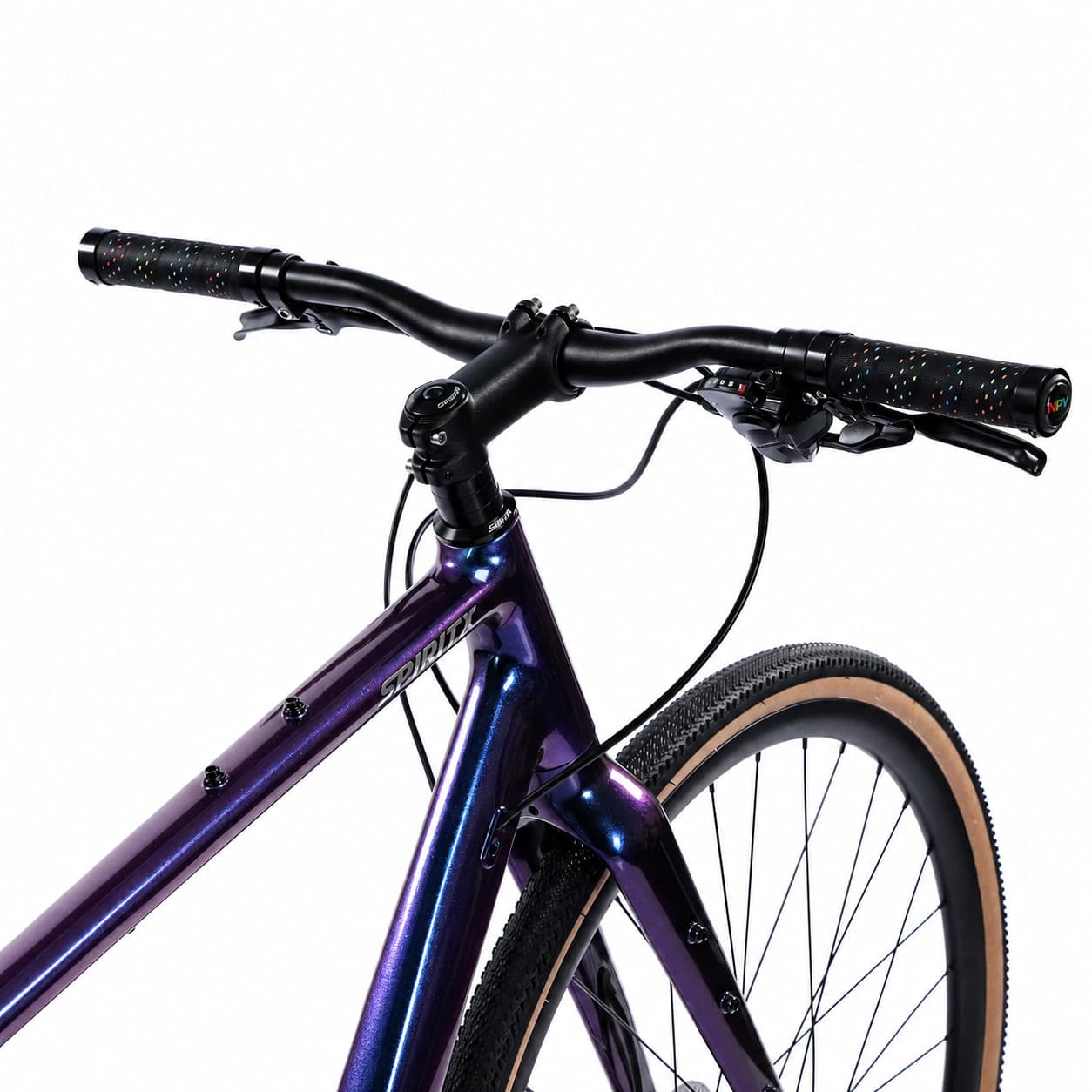

Cockpit
- Stem
- Adjustable Aluminum Alloy Stem

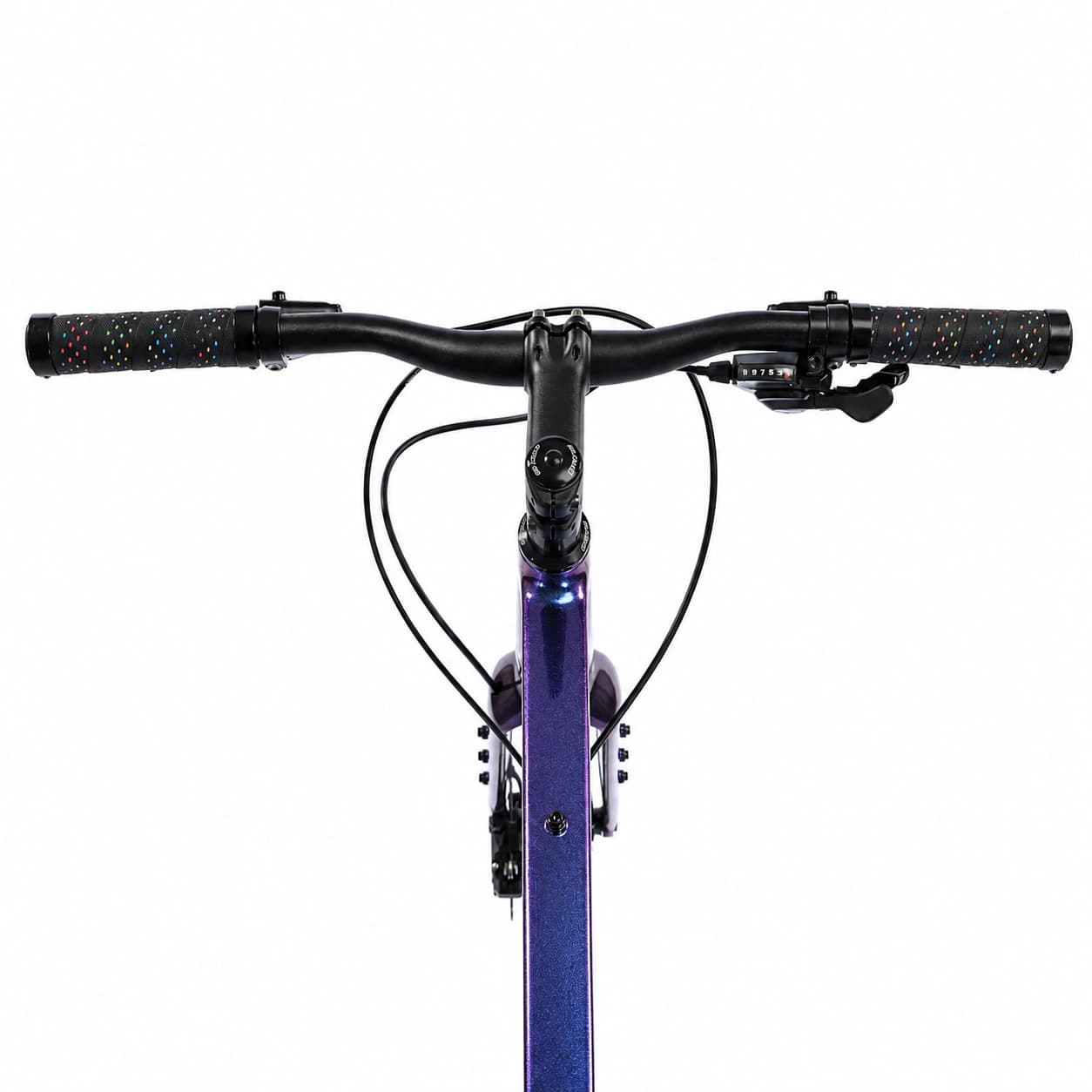

- Handlebar
- Aluminum Flat Handlebar 31.8 × 620 mm
- Bar Tape
- NPY Black Foam Grip

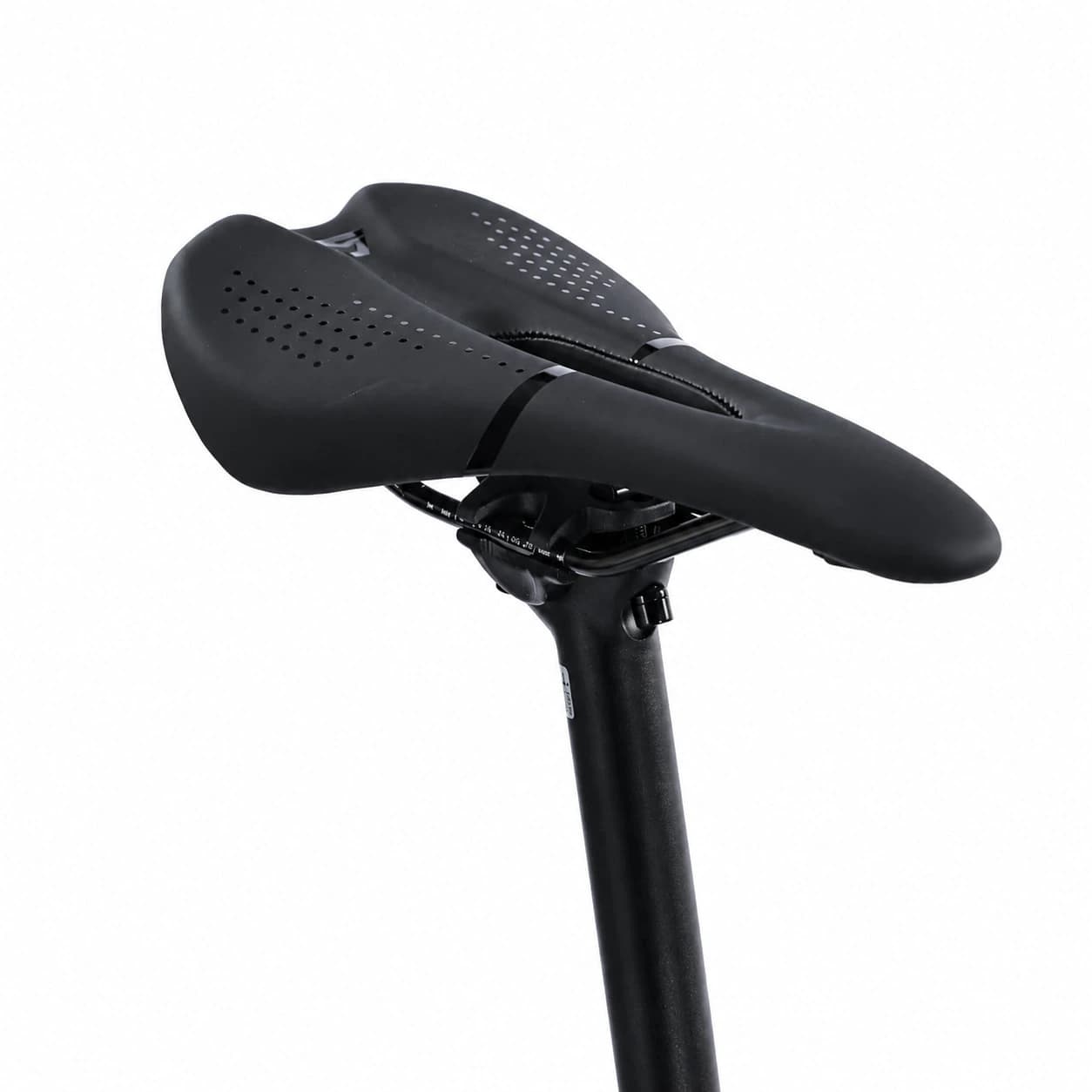

- Saddle
- Ergonomic Comfort Saddle
- Seatpost
- Aluminum Alloy Seatpost 27.2 × 300 mm

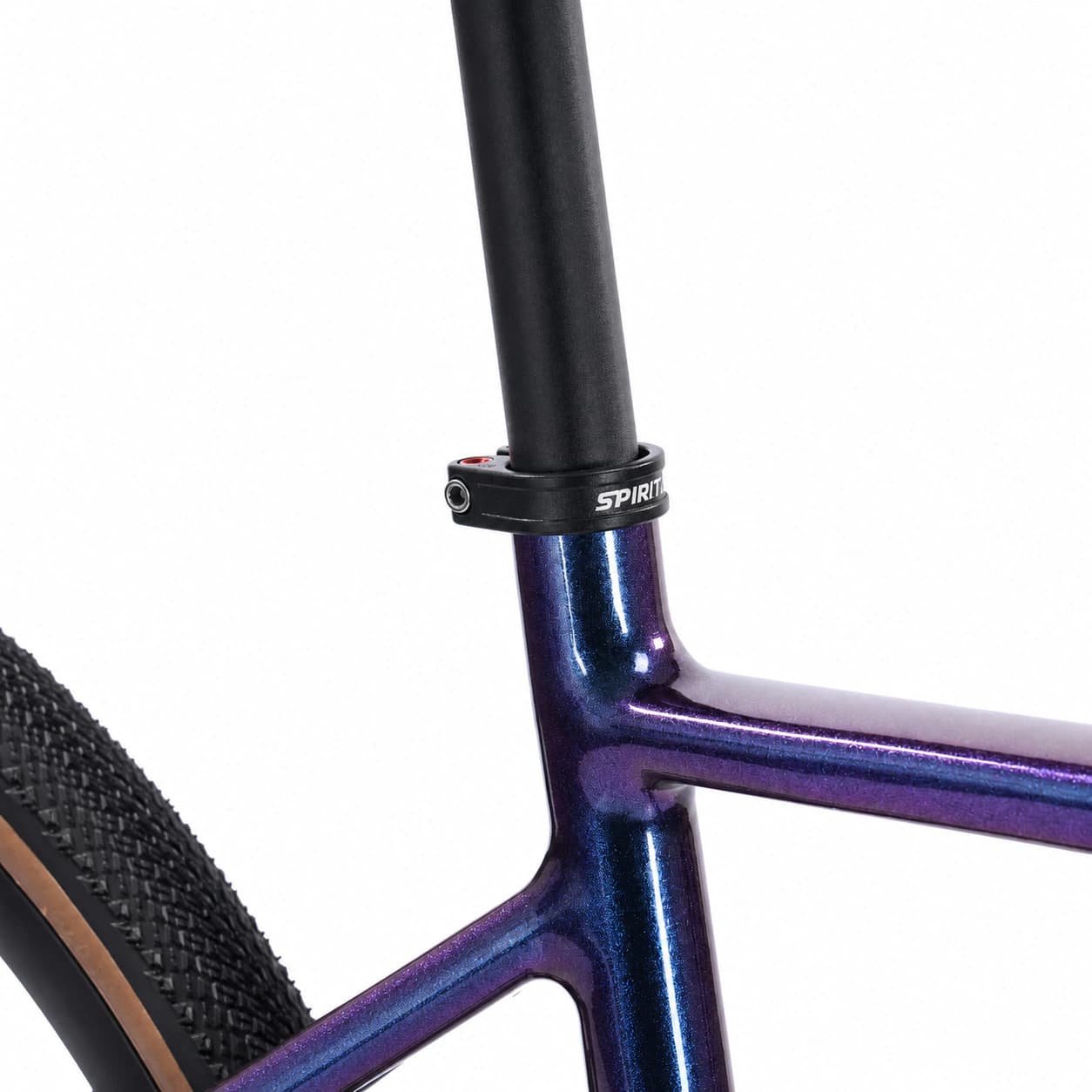

- Seat Clamp
- Quick Release Seat Clamp 31.8 mm
Weight
- Weight
- Approx. 10.5 kg
- Measured Size
- 470 mm
Accessories
- Bottle Cage
- Bottle Cage
- Kickstand
- Kickstand
- Assembly Tools
- Assembly Tools
- Front Fender
- Front Fender
- Rear Fender
- Rear Fender
Weight is based on a production bike in the stated size. Actual weight may vary by color, size, specification and production batch. Specifications are subject to change without notice.
| Measurement | S430mm | M470mm | L500mm | XL530mm |
|---|---|---|---|---|
| Seat Tube Length | ||||
| Seat Tube Angle | ||||
| Effective Top Tube | ||||
| Head Tube Length | ||||
| Head Tube Angle | ||||
| Fork Offset | ||||
| Trail | ||||
| Wheelbase | ||||
| Chainstay Length | ||||
| Bottom Bracket Drop | ||||
| Reach | ||||
| Stack | ||||
| Standover Height | ||||
| Wheel Size |
Geometry Diagram
Hover over or tap a table value to view its measurement line.
Scout Geometry V1
