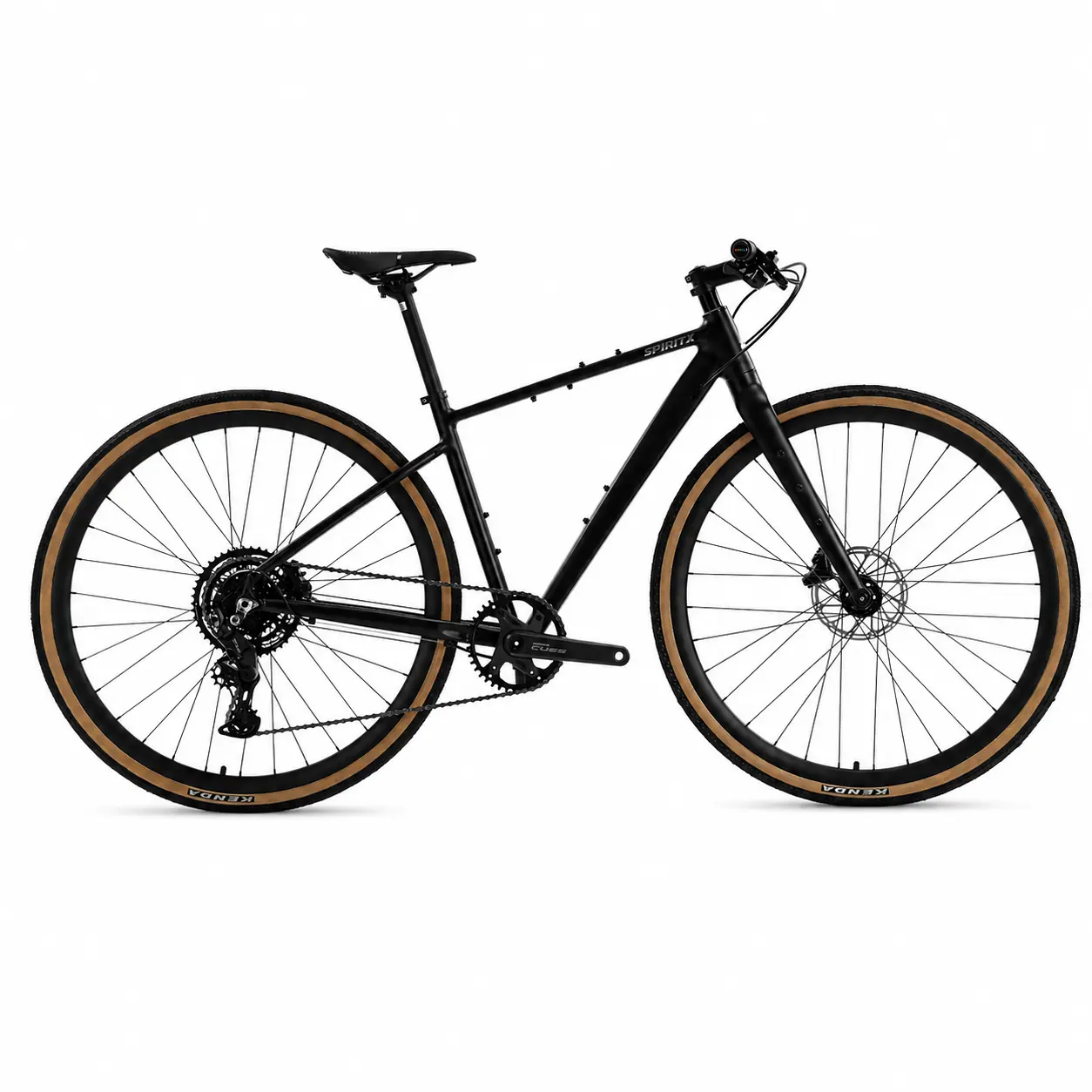

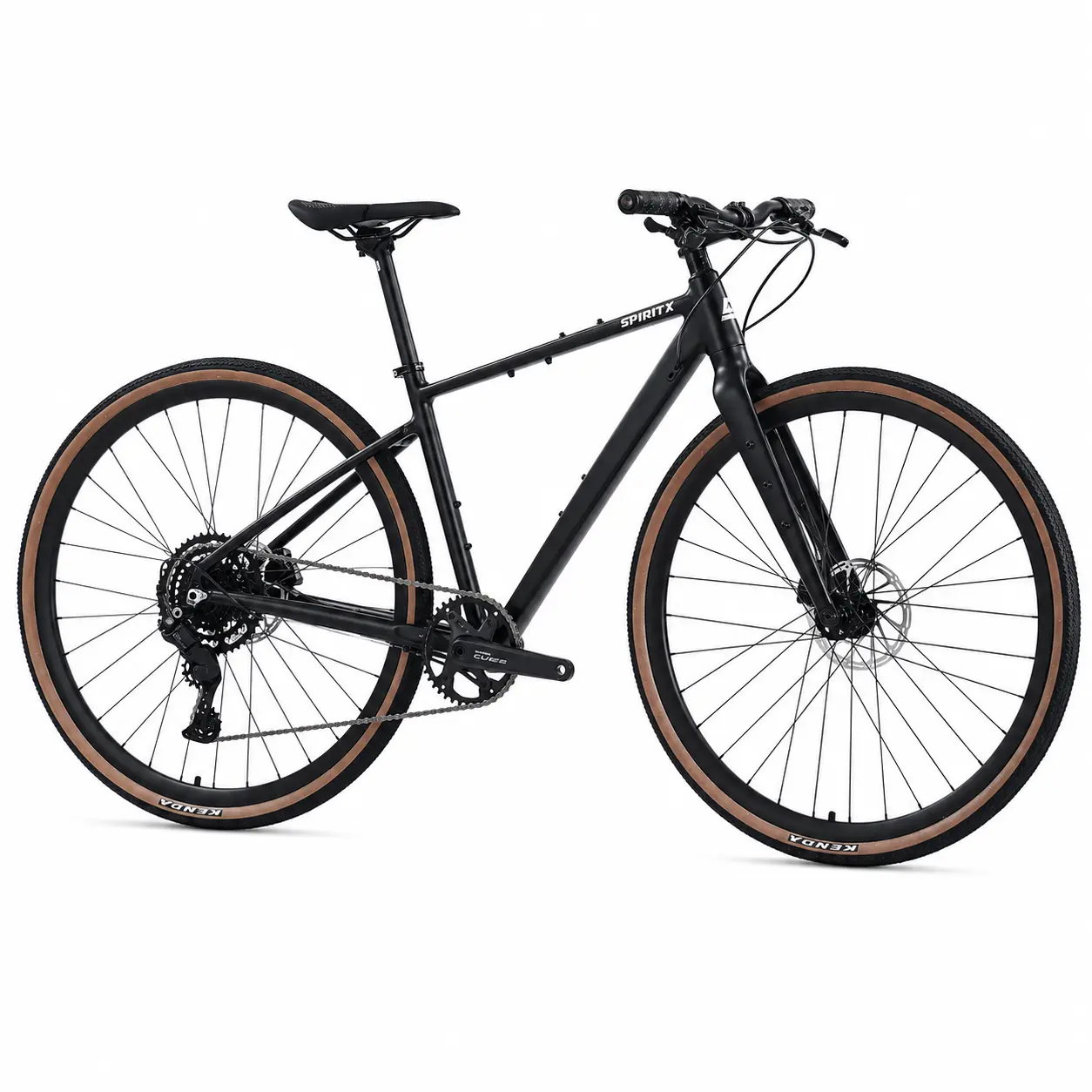

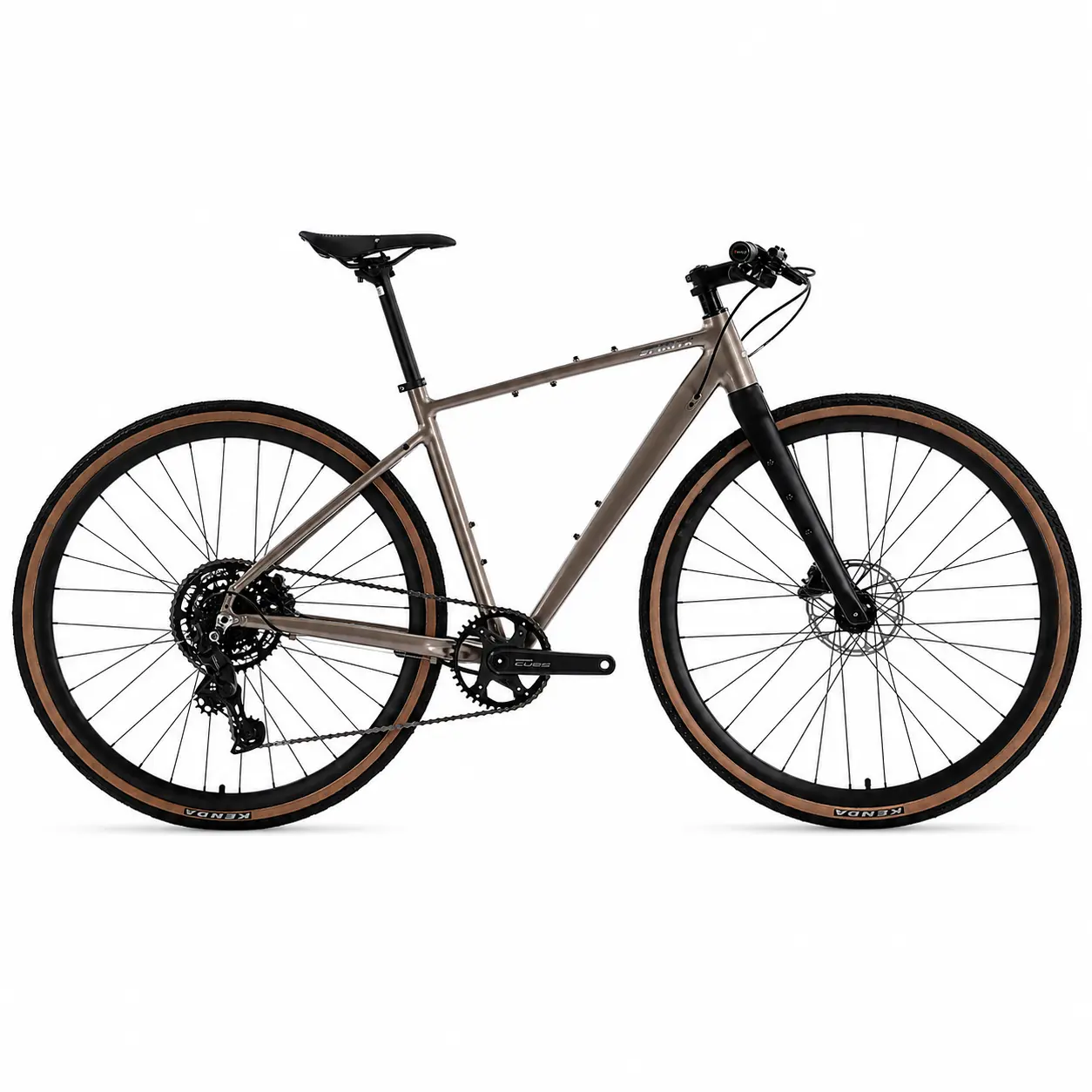

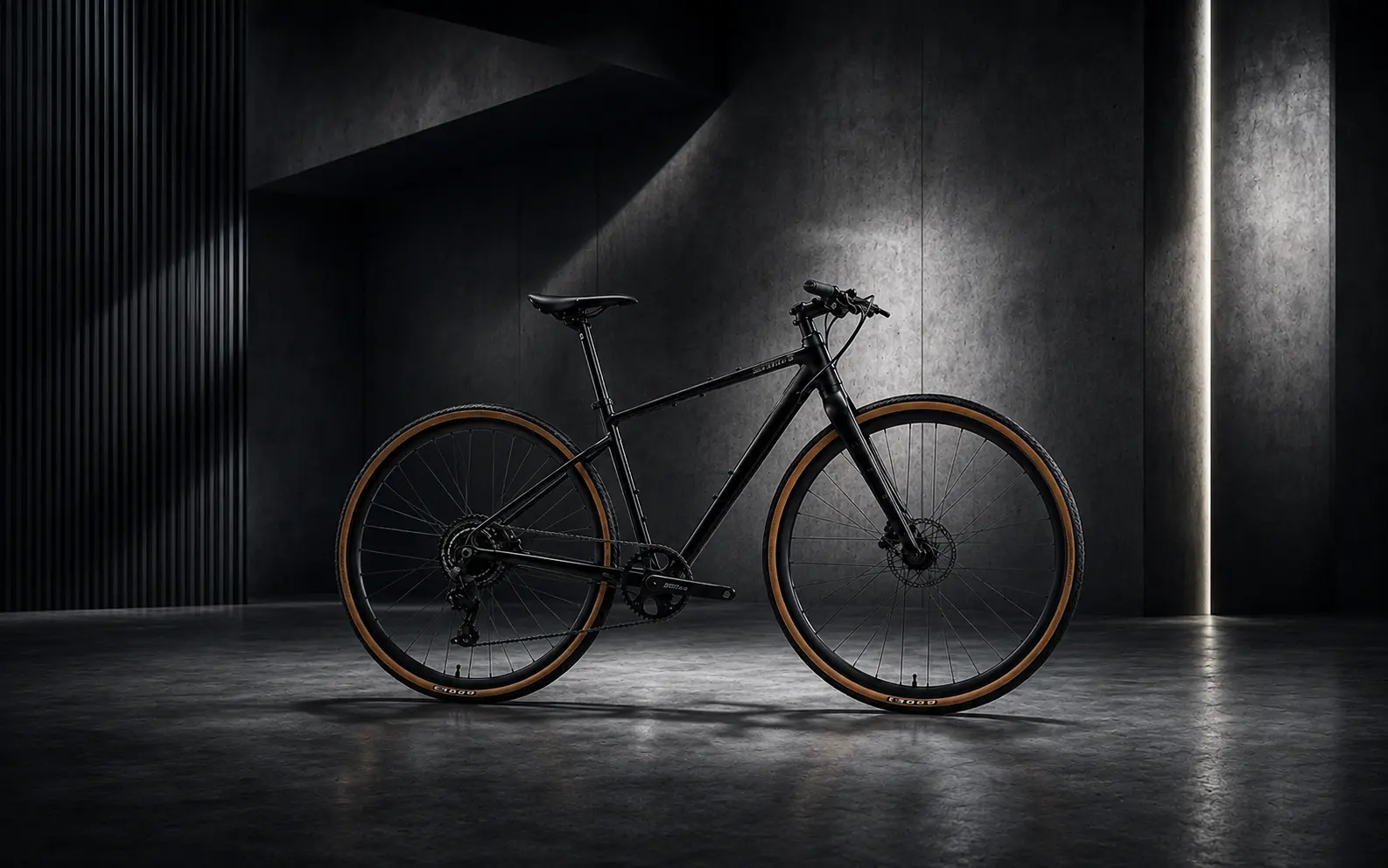

Scout S9 is the entry-level gravel bike of the SpiritX Scout family. Built on a lightweight aluminum frame platform, it delivers versatile performance for urban riding, gravel exploration and long-distance adventures.
- Lightweight aluminum Scout frame platform
- 700×50C tire clearance
- Reliable SHIMANO CUES 1×9 drivetrain
- Stable and comfortable gravel geometry
Frame
- Frame Model
- WIND
- Frame Material
- Aluminum Alloy
- Bottom Bracket Shell
- BSA68 Threaded Bottom Bracket
- Cable Routing
- Semi-Internal Cable Routing
- Rear Spacing
- 12×142 mm Thru Axle
- Front Spacing
- 100×12 mm Front Thru Axle
- Brake Mount
- Flat Mount Disc Brake
- Maximum Tire Clearance
- Compatible with 700×50C Tires
- Head Tube
- 42/52 mm Straight Head Tube
- Seatpost Compatibility
- 27.2 mm Seatpost Compatibility
- Front Derailleur Compatibility
- 31.8 mm Clamp-On Front Derailleur Compatible
Suspension
- Fork
- SpiritX aluminum alloy front fork, thru-axle design, flat-mount disc brake installation.
Brakes

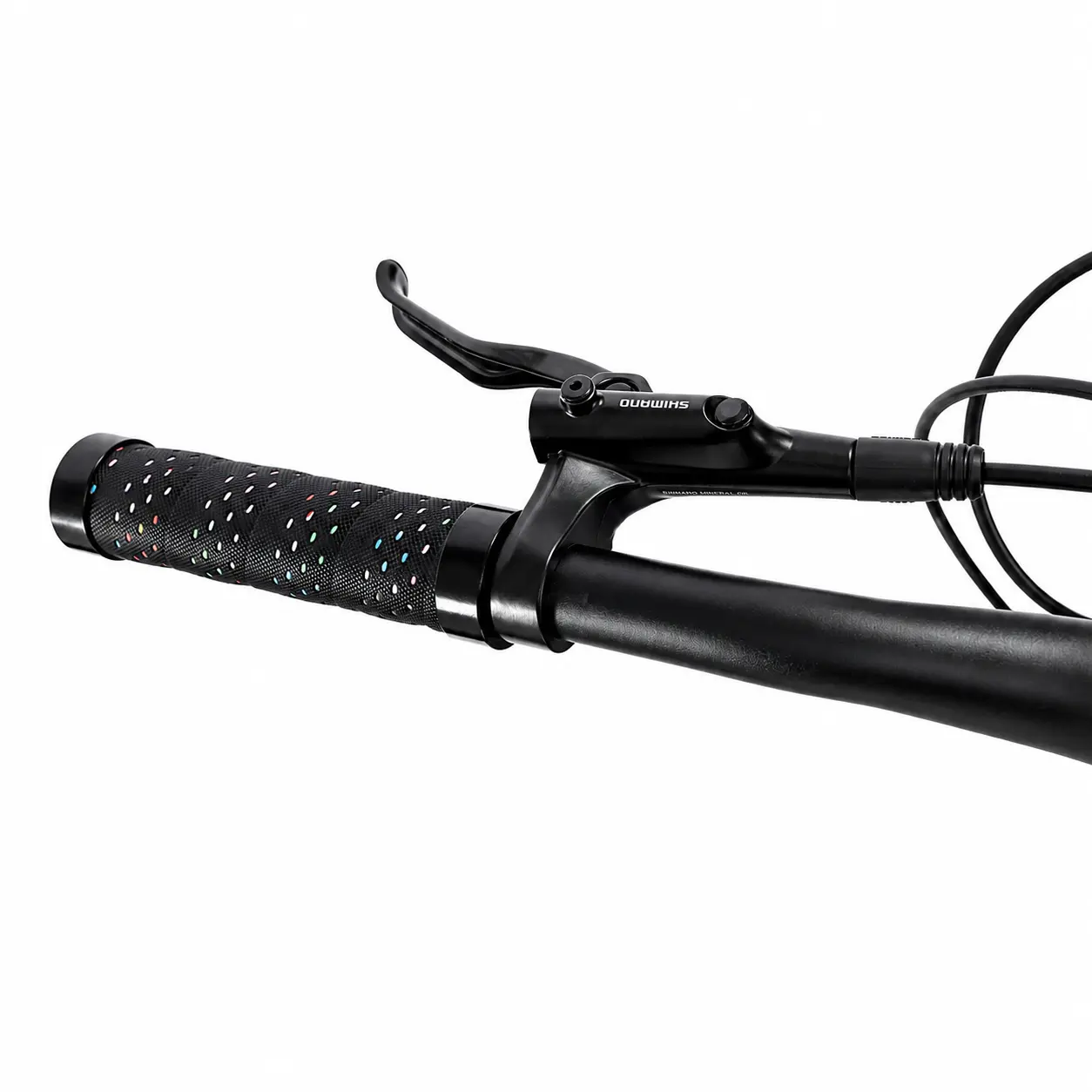

- Front Brake
- SHIMANO UR300 Hydraulic Disc Brake, 160mm Rotor
- Rear Brake
- SHIMANO UR300 Hydraulic Disc Brake, 160mm Rotor
Drivetrain

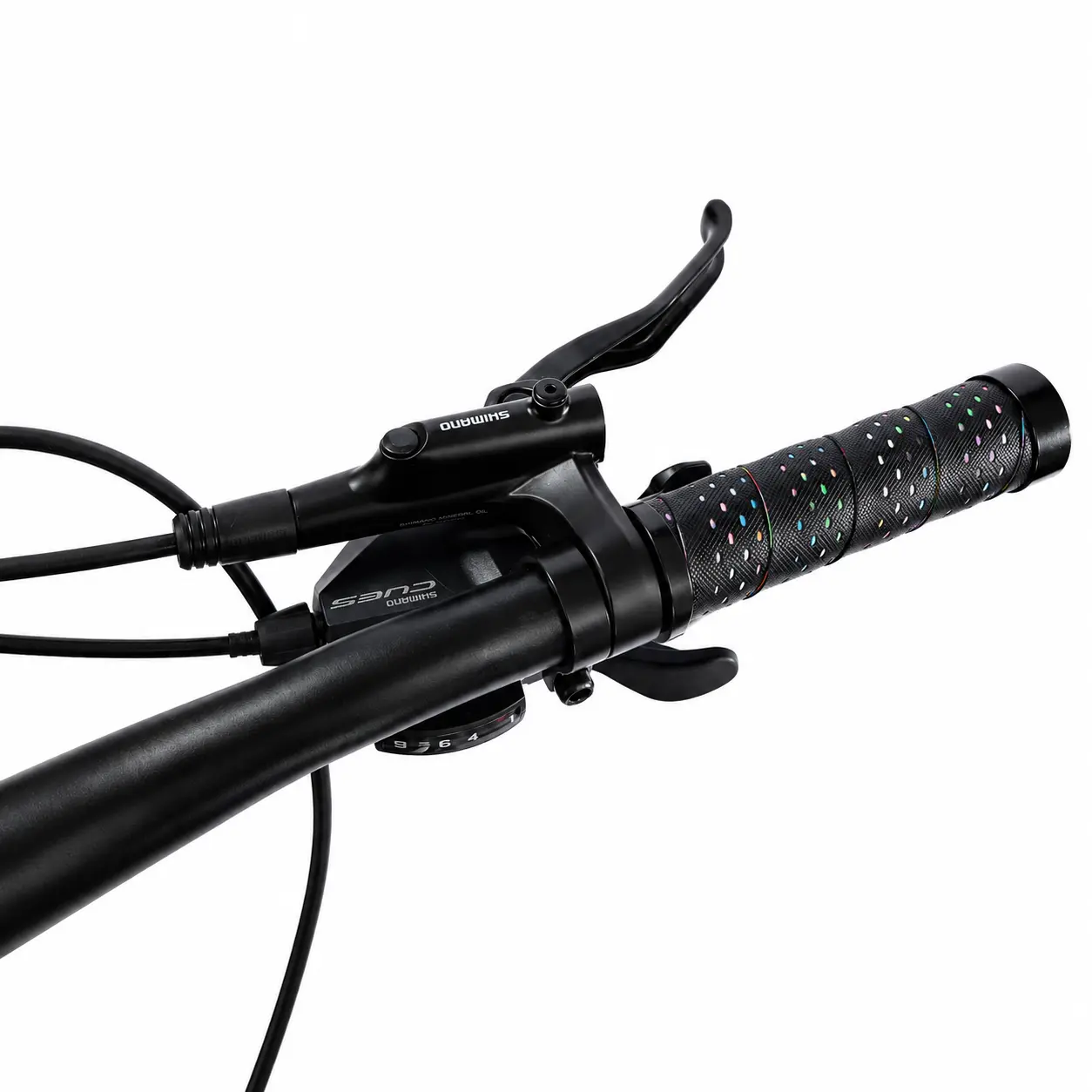

- Shifter
- SHIMANO CUES U4000 1×9-Speed Shifter
- Rear Derailleur
- SHIMANO CUES U4000 9-Speed Rear Derailleur

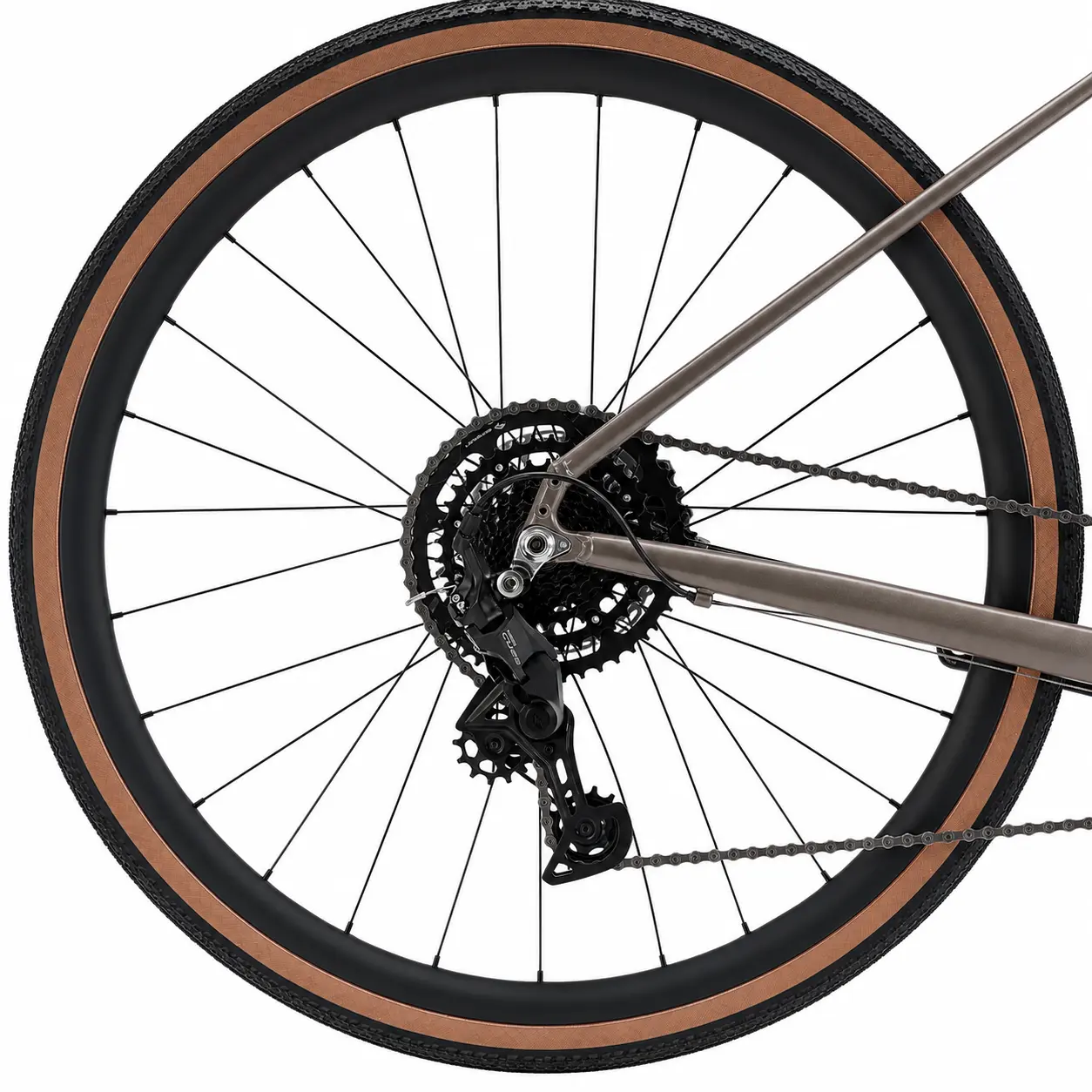

- Cassette
- SHIMANO CUES LG300-9 9-Speed Cassette 11-46T
- Chain
- SHIMANO LG500 Chain

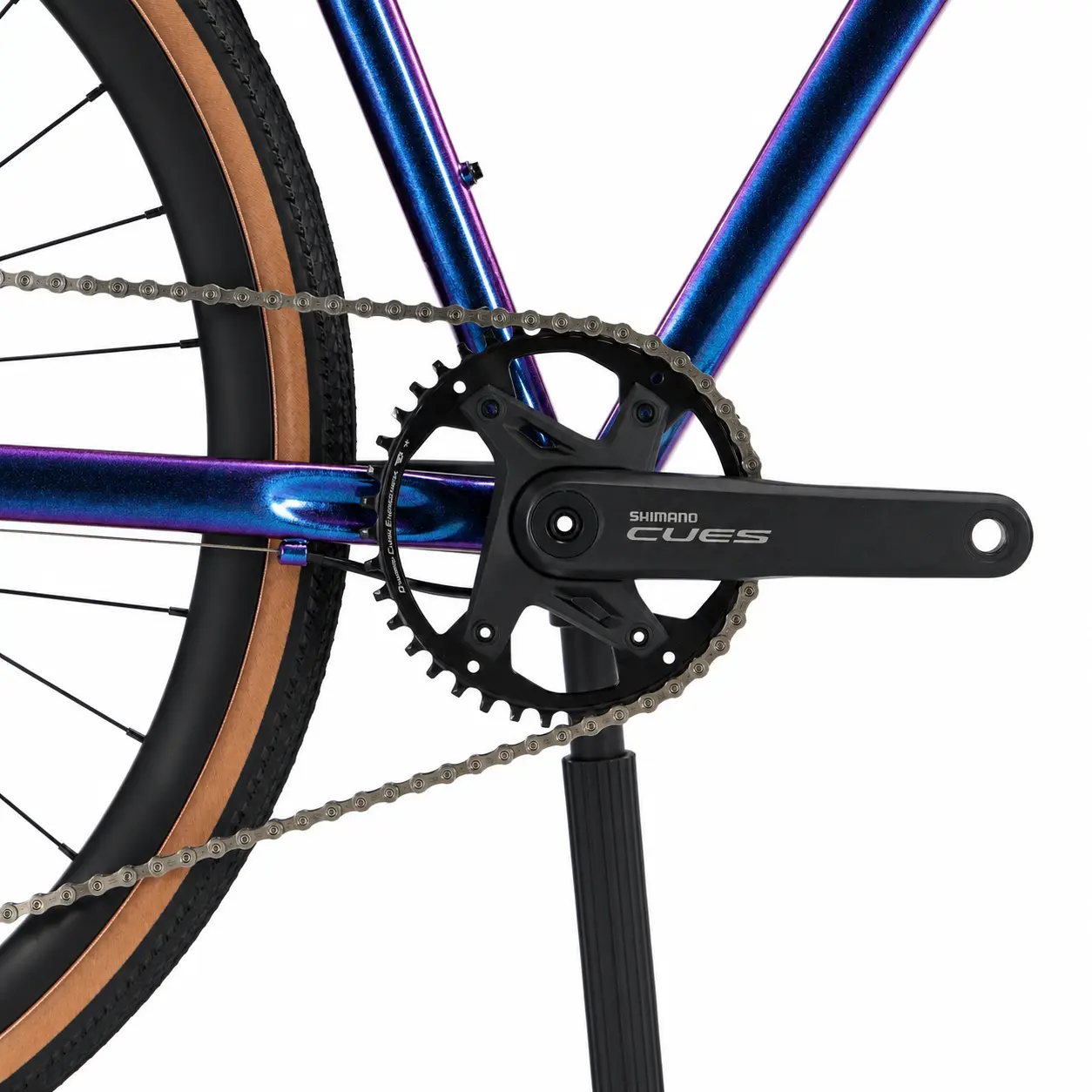

- Crankset
- SHIMANO CUES U6000 Single Crankset
- Chainring
- 40T Chainring
- Bottom Bracket
- SHIMANO MT501 BSA 68mm Threaded Bottom Bracket
Wheels & Tires
- Front Tire
- Kenda K1185 700×35C Tire

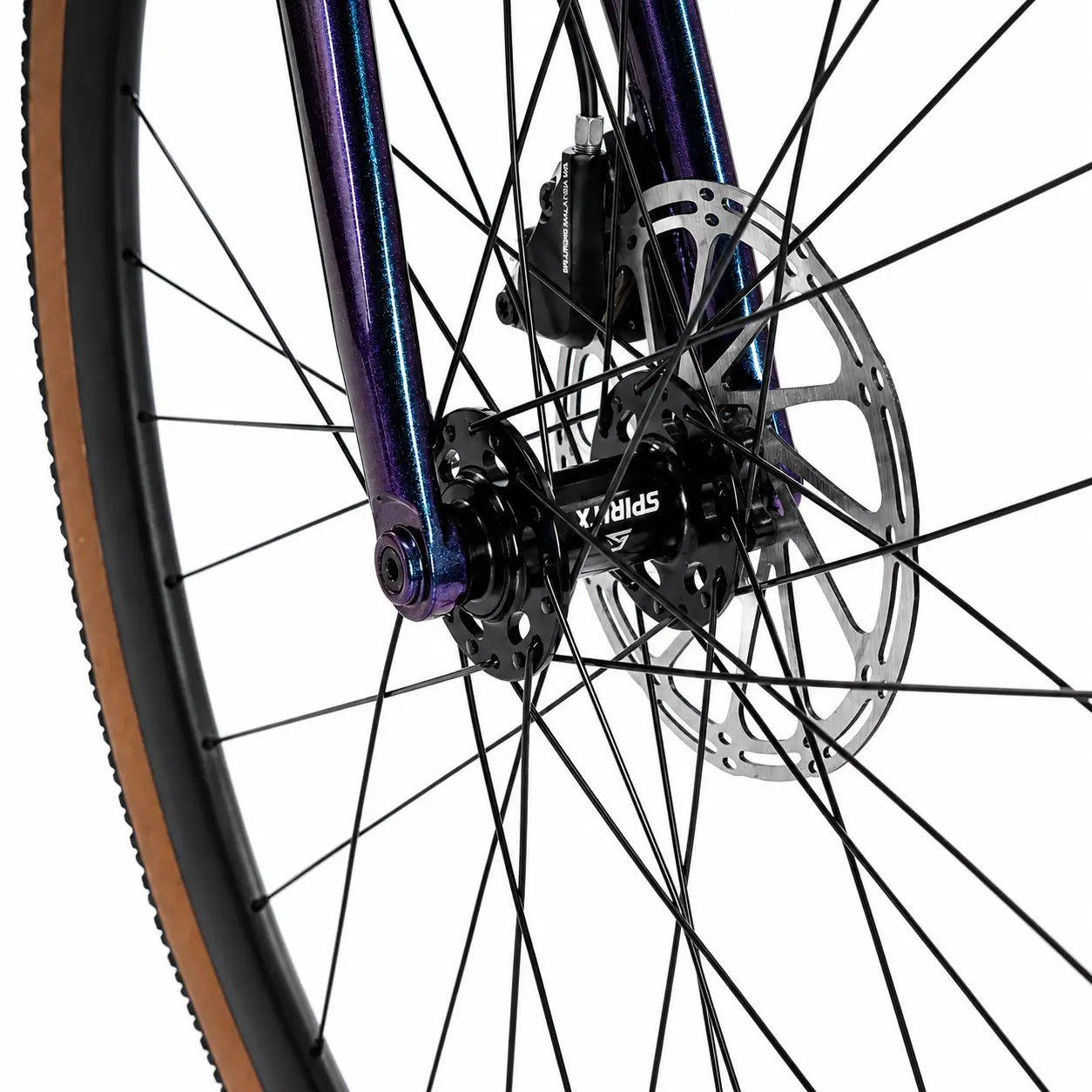

- Front Wheel
- Aluminum Alloy Front Wheel, 29mm Rim Depth, 32H, 6-Bolt Disc Brake Mount, 19mm Internal Width
- Rear Tire
- Kenda K1185 700×35C Tire
- Rear Wheel
- Aluminum Alloy Rear Wheel, 29mm Rim Depth, 32H, 6-Bolt Disc Brake Mount, 19mm Internal Width
- Tubes
- Kenda 700Cx35/43C

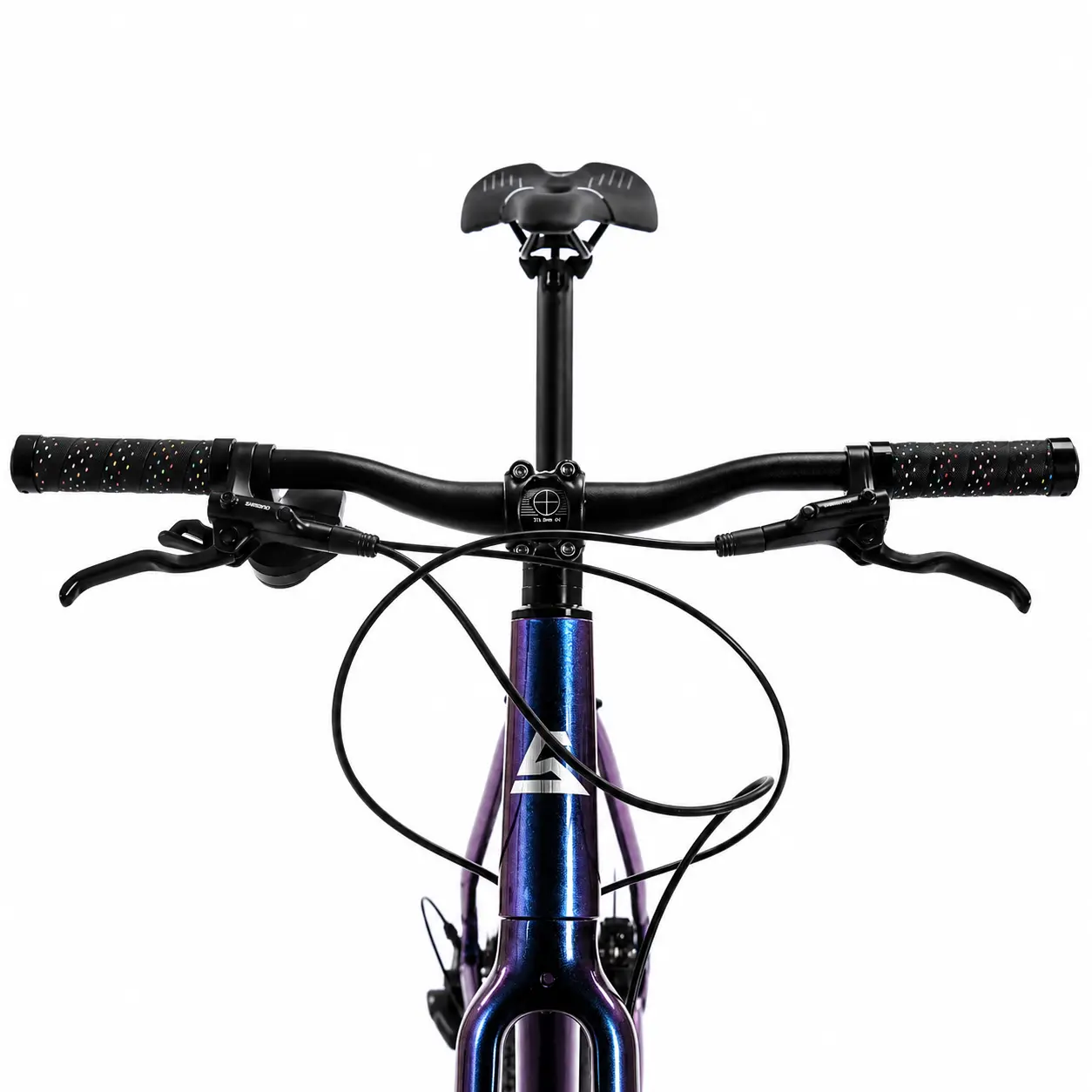

Cockpit
- Stem
- Adjustable Aluminum Alloy Stem

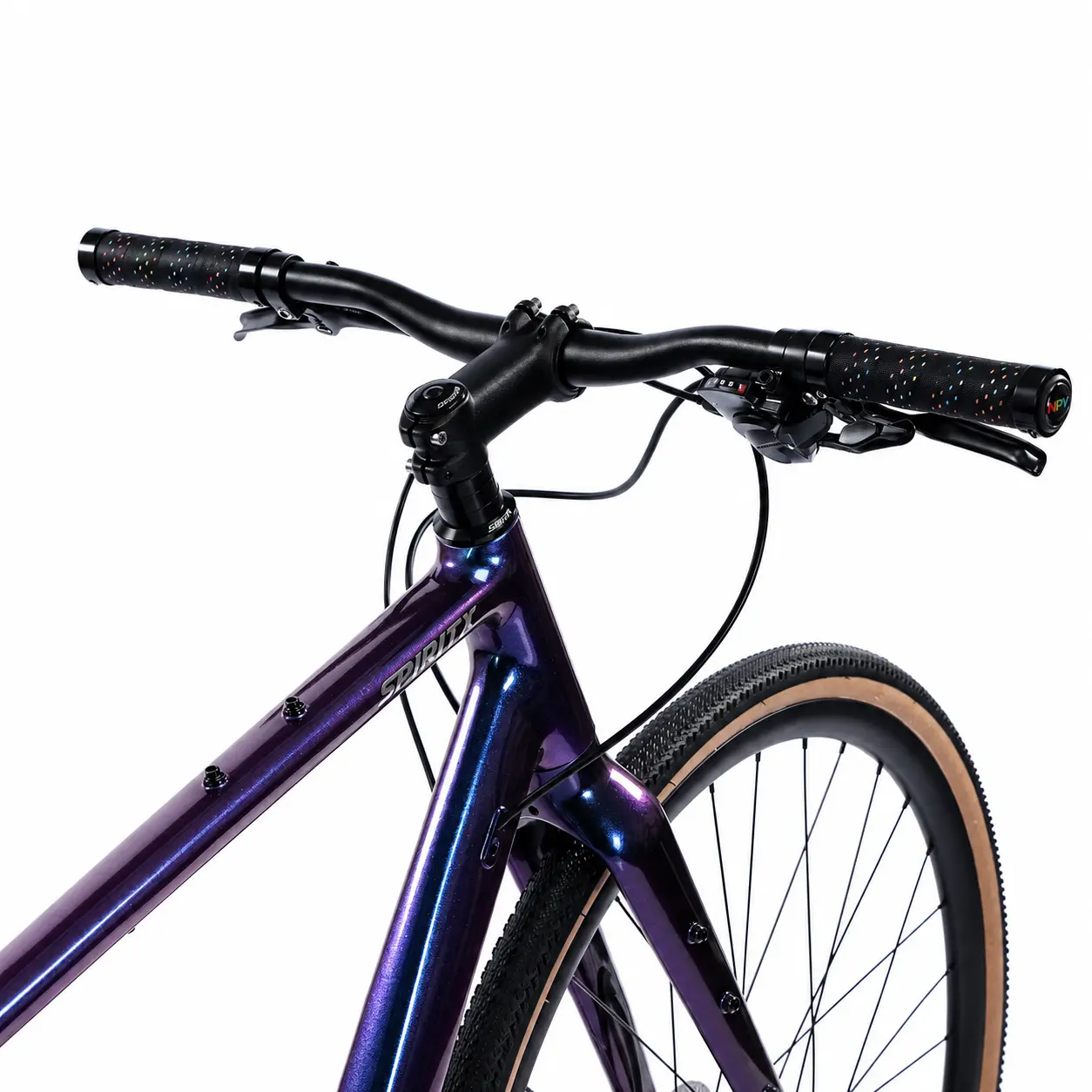

- Handlebar
- Aluminum Flat Handlebar 31.8 × 620 mm
- Bar Tape
- NPY Black Foam Grip

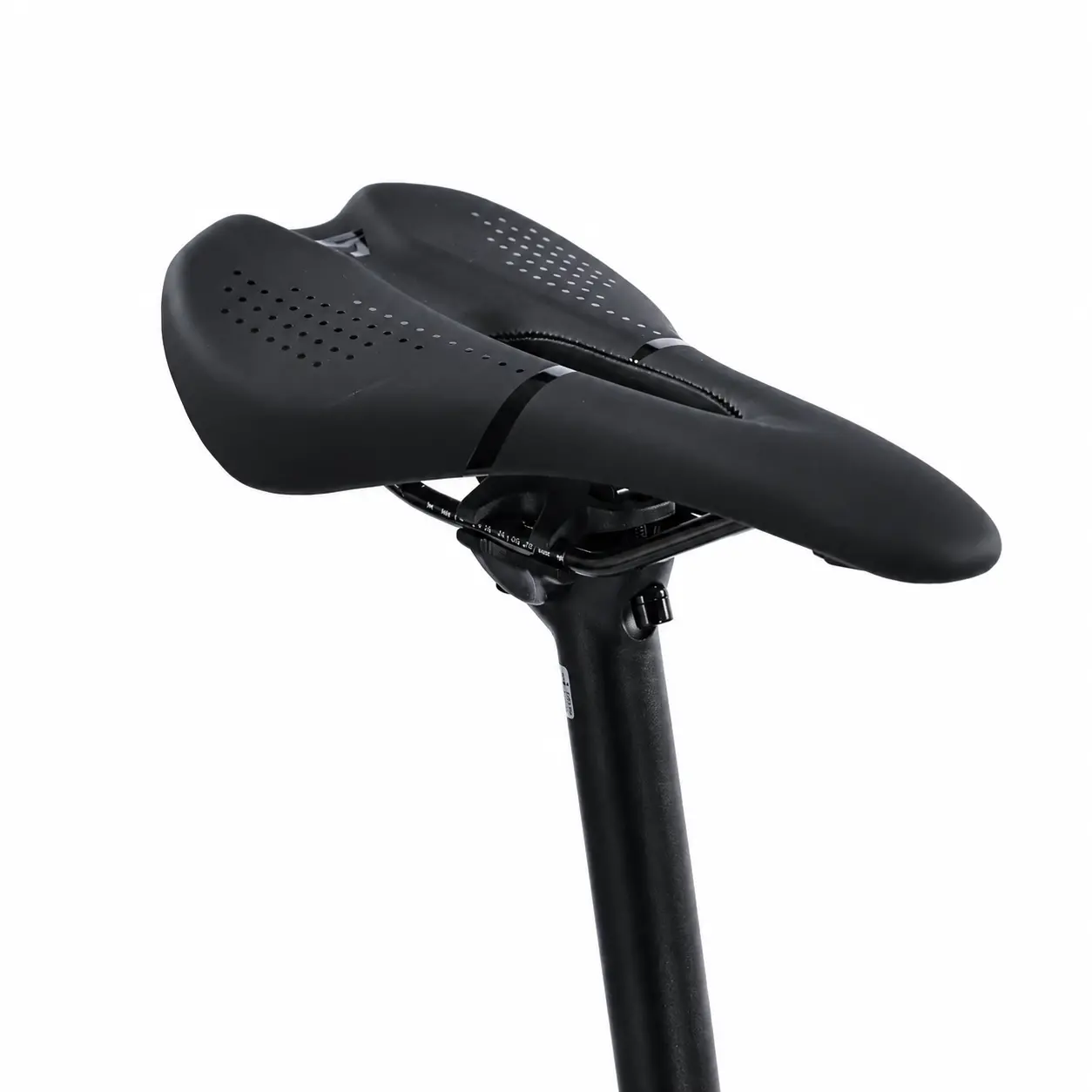

- Saddle
- Ergonomic Comfort Saddle
- Seatpost
- Aluminum Alloy Seatpost 27.2 × 300 mm
- Seat Clamp
- Quick Release Seat Clamp 31.8 mm
Weight
- Weight
- Approx. 10.5 kg
- Measured Size
- 470 mm
Accessories
- Bottle Cage
- Bottle Cage
- Kickstand
- Kickstand
- Assembly Tools
- Assembly Tools
- Front Fender
- Front Fender
- Rear Fender
- Rear Fender
Weight is based on a production bike in the stated size. Actual weight may vary by color, size, specification and production batch. Specifications are subject to change without notice.
| Measurement | S430mm | M470mm | L500mm | XL530mm |
|---|---|---|---|---|
| Seat Tube Length | ||||
| Seat Tube Angle | ||||
| Effective Top Tube | ||||
| Head Tube Length | ||||
| Head Tube Angle | ||||
| Fork Offset | ||||
| Trail | ||||
| Wheelbase | ||||
| Chainstay Length | ||||
| Bottom Bracket Drop | ||||
| Reach | ||||
| Stack | ||||
| Standover Height | ||||
| Wheel Size |
Geometry Diagram
Hover over or tap a table value to view its measurement line.
Scout Geometry V1
